Spilldoc Faucet-mounted Eye Wash SD-506

Spilldoc Faucet-mounted Eye Wash SD-506

Part Number: SD-506
by SPILLDOC
Are you considering large quantity order?

If you have a large quantity requirements, we're happy to support you with a bulk order discounts.

Please contact us at sales@spilldoc.sg

Require Official Quotation and Tax Invoice?

Click Request a Quote, fill up the details and submit.

[At the payment section, select Request a Quote or Request a Tax Invoice. (You dont need to make payment doing so).]

Alternatively, you may also send us an email to sales@spilldoc.sg with your company details and purchase requirements.

Once received your submission, our local sales team will contact you within 1 business day.

Check for Stocks Availability & Delivery Lead time

We encourage our customers to check for stocks availability to ensure that intended purchase items are available/reserved for a timely delivery.

WHATSAPP CHAT WITH A SALES CONSULTANT

Become our Reseller/ Distributor

If you're a reseller or a contractor considering a frequent purchases, you may request for a special quote with discounts.

Kindly send us an email at sales@spilldoc.sg and our local sales team will be with you within 1 working day.

-
-

Before GST/Local Tax

Quick Question?

WHATSAPP CHAT WITH A SALES CONSULTANT

Eyewash faucets are used to quickly rinse the eyes in case of exposure to hazardous substances or foreign particles. They are typically found in laboratories, industrial facilities, and healthcare settings to provide immediate first aid for eye injuries. The faucets deliver a gentle flow of water to flush out the eyes, helping to minimize the potential damage or irritation caused by chemicals, dust, or other contaminants.



SPECIFICATION

Product name
Spilldoc Faucet-Mounted Eyewash SD-506
Brand
 SPILLDOC
Model
SD-506
Certificate
CE, ISO
Standard
ANSI Z358.1-2014
Nominal Pressure
0.4
Sealing Pressure
0.45
Eye Wash Flow
≥11.4L/Min
Work  Pressure
0.2MPA-0.4MPA
Application Conditions
Pure water at normal temperature or water that meets sanitary standards
Material
304 stainless steel and ABS bowl
Using Environment
Laboratories and hospitals where there is a possibility of accidental spills and splashing of hazardous liquids such as acids and chemicals.
Special Note
If the acid concentration is too high, recommend using 316 stainless steel.
When using ambient temperature below 0℃, use antifreeze eye wash.



Installation Notes

1） First install the faucet on the wash basin or countertop, connect the water pipe, and then connect the eyewash and the faucet.

2）Adjust the nozzle angle of the eye wash, turn on the faucet switch, and check the condition of each water outlet and whether the switch handle is flexible.

Failure and Troubleshooting

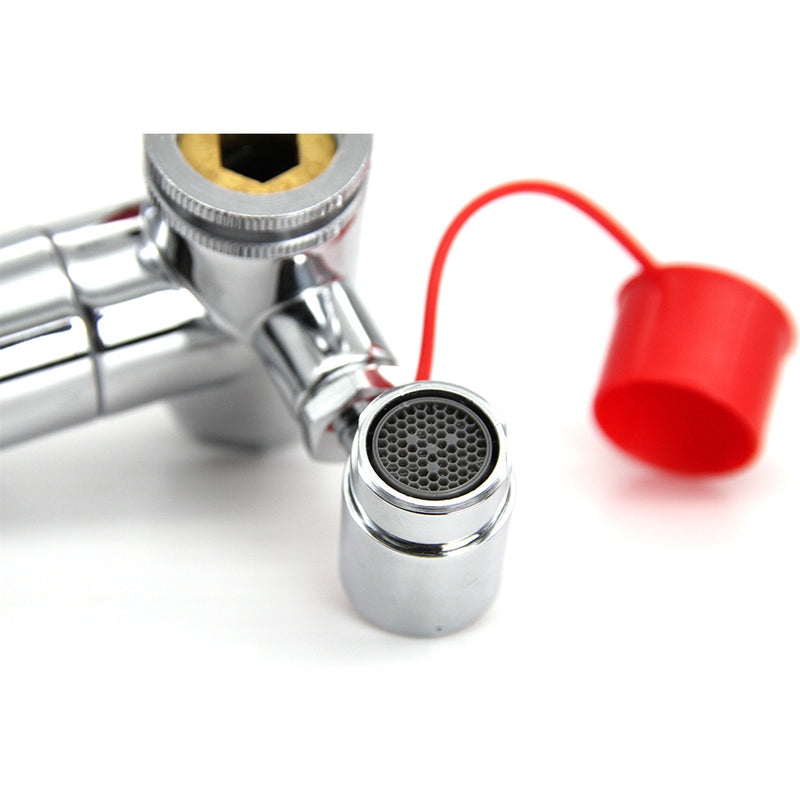

If the nozzle is not flowing smoothly, please use the special tool attached to the product to disassemble and clean the nozzle filter.

If the problem cannot be solved, please contact our company after-sales service.
