Spilldoc Self Contained Gravity Fed Portable Shower & Eyewash Station 1500L

Spilldoc Self Contained Gravity Fed Portable Shower & Eyewash Station 1500L

Part Number: SD-602B/316
by SPILLDOC
Are you considering large quantity order?

If you have a large quantity requirements, we're happy to support you with a bulk order discounts.

Please contact us at sales@spilldoc.sg

Require Official Quotation and Tax Invoice?

Click Request a Quote, fill up the details and submit.

[At the payment section, select Request a Quote or Request a Tax Invoice. (You dont need to make payment doing so).]

Alternatively, you may also send us an email to sales@spilldoc.sg with your company details and purchase requirements.

Once received your submission, our local sales team will contact you within 1 business day.

Check for Stocks Availability & Delivery Lead time

We encourage our customers to check for stocks availability to ensure that intended purchase items are available/reserved for a timely delivery.

WHATSAPP CHAT WITH A SALES CONSULTANT

Become our Reseller/ Distributor

If you're a reseller or a contractor considering a frequent purchases, you may request for a special quote with discounts.

Kindly send us an email at sales@spilldoc.sg and our local sales team will be with you within 1 working day.

-
-

Before GST/Local Tax

Quick Question?

WHATSAPP CHAT WITH A SALES CONSULTANT

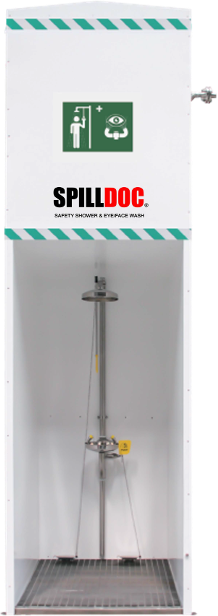

Spilldoc Self Contained Gravity Fed Portable Shower & Eyewash Station 1500L

Part Number: SD-602B
Brand: Spilldoc
Material: 316 Stainless Steel
Type: Self-Contained, Gravity Fed
Purpose: Decontamination
Tank Capacity: 1500L
Insulation: Tank Insulated
Compliance: ANSI Z358.1-2014 Standard

Product Concept
Emergency eyewash and shower units are designed to rinse contaminants from the user’s eyes, face or body. As such, these units are forms of first aid equipment to be used in the event of an accident. However, they are not a substitute for primary protective devices (including eye and face protection and protective clothing) or for safety procedures when handling hazardous materials. SD-602B 1500L Tank-fed Emergency Eyewash and Shower Cabin is designed for hazardous or non-hazardous environments without water resources. The operation temperature is 0-35℃, and can be customized with heater and insulation, which enable the cabin to be used outdoor.

 Technical Details

Shower Head & Eyewash Bowl: 10” diameter stainless steel
Supply: 1 1/4" FNPT
Waste: 1 1/4" FNPT
Eye Wash Flow: 11.4 L/Min
Shower Flow: 75.7 L/Min
Hydraulic Pressure: 0.2MPA-0.6MPA
Door: No Door (Options: Curtain, Single or double door
Water Source: Drinking water or filtered water

Installation Location

In general, the ANSI standard requires that emergency equipment be installed within 10 seconds of walking distance from the location of a hazard (approximately 55 feet).

The equipment must be installed on the same level as the hazard (i.e. accessing the equipment should not require going up or down stairs or ramps).
