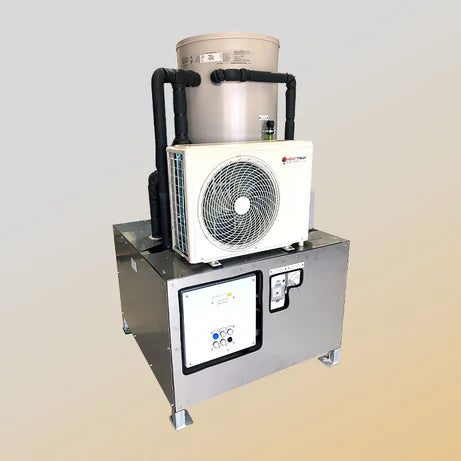

Safety Shower Chiller SC300LP

Safety Shower Chiller SC300LP Self-contained chilled water storage and supply system providing TEPID water to emergency safety showers and eye/facewash stations in hot environments.

• Holds 315L of chilled water sufficient to cool 47oC water at 100L/minute for a minimum of 15 minutes.
• Continuously circulates cooled and sterilized water through the safety showers back to the chiller
• Connects to up to six remote eyewash safety showers within a 100m radius
• Includes an automatic opening/closing stainless steel basin cover over the eye/face wash basin.
• Includes the special AXIOM eye/face wash dispenser to flush debris away from the eyes.

The Heat Trap Chillers are self-contained chilled water storage and supply system providing TEPID water to plumbed emergency safety showers and face/eye wash stations in hot environments.

Australian Standard AS4775 recommends a maximum water temperature for emergency safety showers and face/eye wash stations of 37.8ºC and a minimum delivery time of 15 minutes. TEPID water is defined as between 15ºC and 37.8ºC.

The Heat Trap SC300 Chillers are designed to provide TEPID water at a rate of up to 100 Liters/minute per shower with incoming potable feed water temperatures up to 47ºC. The Heat Trap Chillers are free standing self- contained units which can be plumbed into the supply line between the potable mains and the emergency safety shower and or face/eye wash station and connected with a single phase 10 amp 240V general purpose power outlet. Galvanized steel framing and seismic and cyclone rated bolt-downs ensure suitability for all industrial and mining applications.

Product Features

• Standalone self-contained chilled water storage and supply system for plumbed eyewash safety showers.
• Complies with Australian Standard AS4775 to provide TEPID water (between 15ºC and 37.8ºC) for facewash/ eyebath facilities connected to potable water mains with supply temperatures up to 47ºC.
• Operates with potable mains water pressures between 300 kPa and 650 kPa.
• Built in recirculation cools the water in the piping between the chiller and the eyewash safety shower.
• Chilled water storage at 5ºC and recirculation of cooled UV sterilized water eliminates the deadlegs and restricts bacterial growth.
• Potable main deadleg to chiller flushed weekly through automatic dump valve
• Cyclone and seismic rated design.
• Single phase 10A 240V electrical supply.
• The Heat Trap SC300 Chillers can service up
• to four (4) eyewash safety shower units located within a 50 metre radius of the chiller unit.
• Fail safe water flow

Benefits

• SC300, 300 Liter chilled water storage capacity is sufficient to supply 100 Liters/min of TEPID water for a minimum of 15 minutes when fed with incoming potable water up to 47ºC.
• Chilled water storage at 5ºC and recirculation of cooled water through a UV sterilizer eliminates bacterial growth.
• Eliminates water wastage from anti-scald valves at emergency safety showers.
• Eyewash safety showers can be converted to be fully flushed by the mini-ringmain set up between the chiller and the eyewash safety showers.
• Deluge Safety Shower and Facewash elements can be supplied factory fitted to the Chillers.
• Chilled drinking water supply is available as an optional extra
